Export & Save – Results from TLC Tool

Once you’ve annotated your TLC plate and calculated RF values, the tool offers three export options:

  • Download CSV (Rf values)
  • Download annotated image (PNG)
  • Upload both (CSV and annotated image) to the Chemotion (if image was from Chemotion)

1. Download CSV​

Click the Save CSV button to export the results table.

File Contents:​

  • Mixture labels (X axis)
  • Substance/Spot labels (Y axis)
  • RF values (0–1 range)

Format:​

mixture_label (X axis),substance_label (Y axis),RF value
Sample A,Spot 1,0.72
Sample A,Spot 2,0.53

Extras:​

Includes inline summary notation for lab records:

TLC (solvents); Rf (UV-Vis in nm, staining) = 0.72 (Spot 1)[h1], 0.53 (Spot 2)[h2]

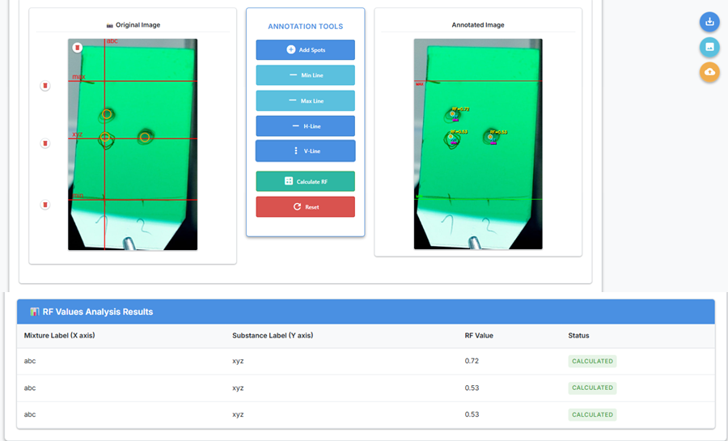

Download CSV Button

2. Download Annotated Image​

Click the Save Image button to download a PNG with:

  • All spots and lines drawn
  • Labels visible
  • Resized to match the original image resolution

📎 Filename includes timestamp for traceability.

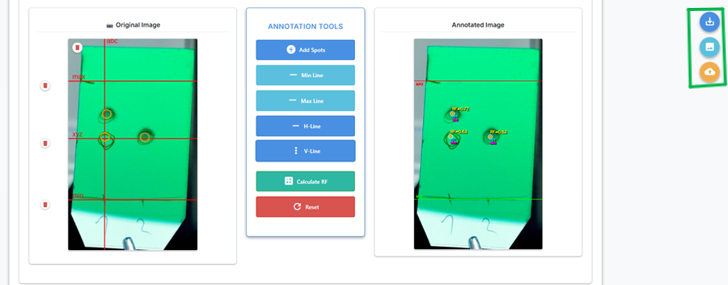

Download Annotated Image

3. Upload to Chemotion​

If the image was originally loaded from the Chemotion:

  • Use the Upload to Chemotion button
  • The tool sends both the annotated image and CSV to the original Chemotion URL
Requirements

  • Image Source Restriction Only images loaded from the Chemotion support cloud upload. If you upload an image locally (i.e., not from the Chemotion), the annotated image cannot be uploaded back to the Chemotion.

  • CSRF Token A valid CSRF token must be available. This is handled internally by the system.
